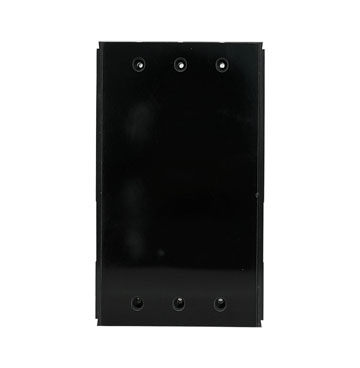

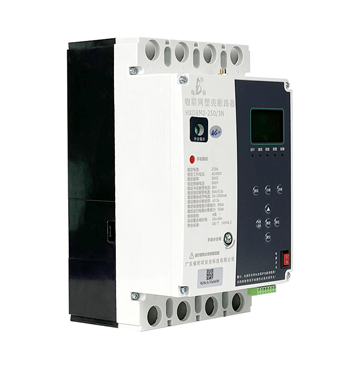

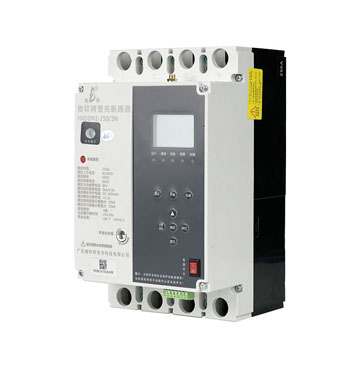

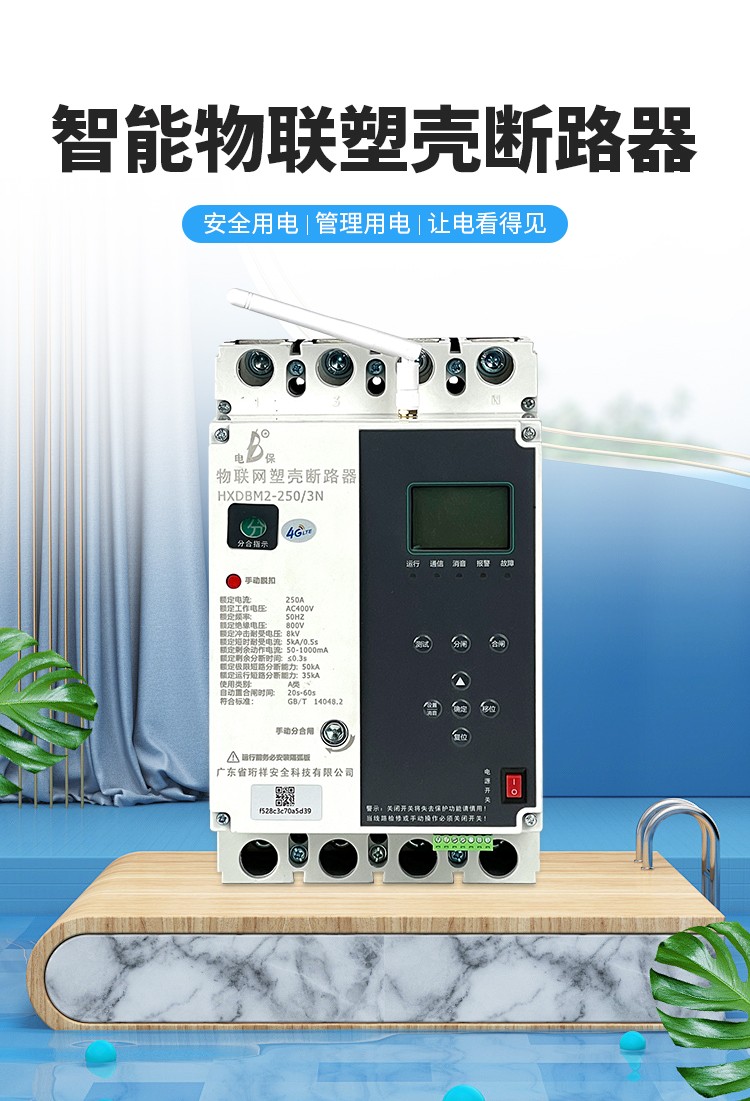

电保物联网塑壳断路器HXDBM2

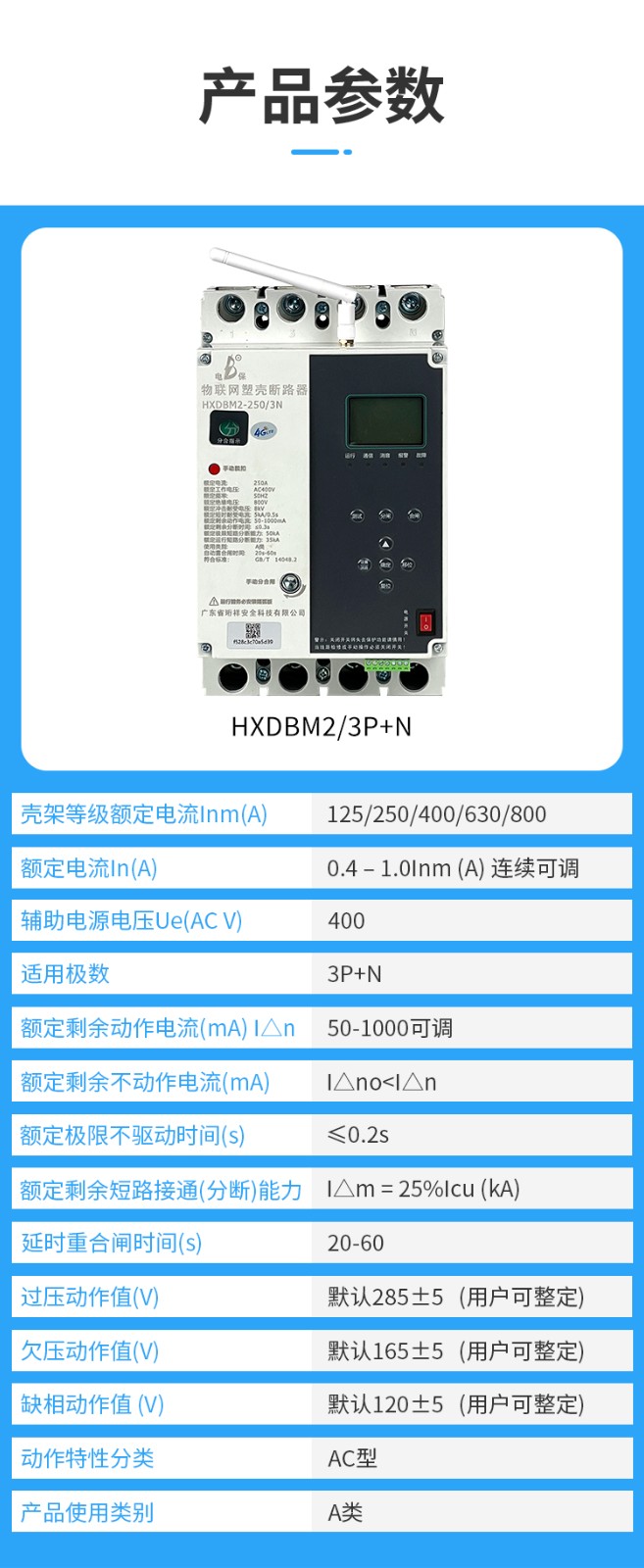

产品简介
品牌
电保

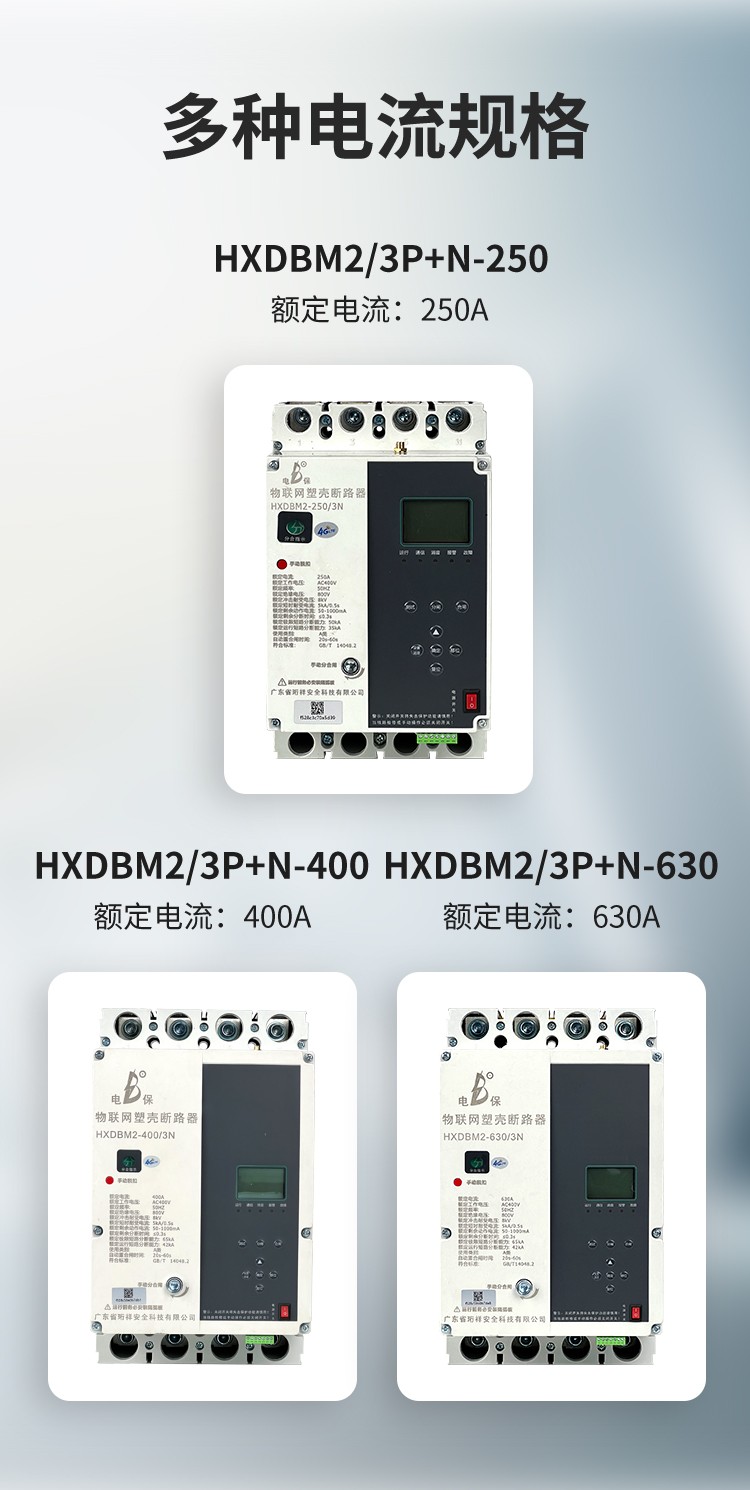

额定电流
125A/250A/400A/630A/800A
额定电流In(A)
0.4 – 1.0Inm (A) 连续可调
辅助电源电压Ue(AC V)
400
极数
3P+N
额定剩余动作电流 I△n
50-1000(mA)可调
额定剩余不动作电流
I△no小于I△n(mA)
额定极限不驱动时间
≤0.2s
额定剩余短路(分断)能力
I△m = 25%Icu (kA)
延时重合闸时间(s)
20-60
过压动作值(V)
默认285±5 (用户可整定)
欠压动作值(V)
默认165±5 (用户可整定)
缺相动作值 (V)
默认120±5 (用户可整定)
动作特性分类
AC型
产品使用类别
A类
